58.P3.8.110.0060SMA
รูปภาพประกอบอาจเป็นรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ราคา / Price : Each
1,550.00 THB
(ยังไม่รวมภาษีมูลค่าเพิ่ม)
จำนวนในสต็อก : 0 | out of stock
สินค้าหมดชั่วคราว (Temporarily out of stock) ไม่พร้อมจำหน่าย

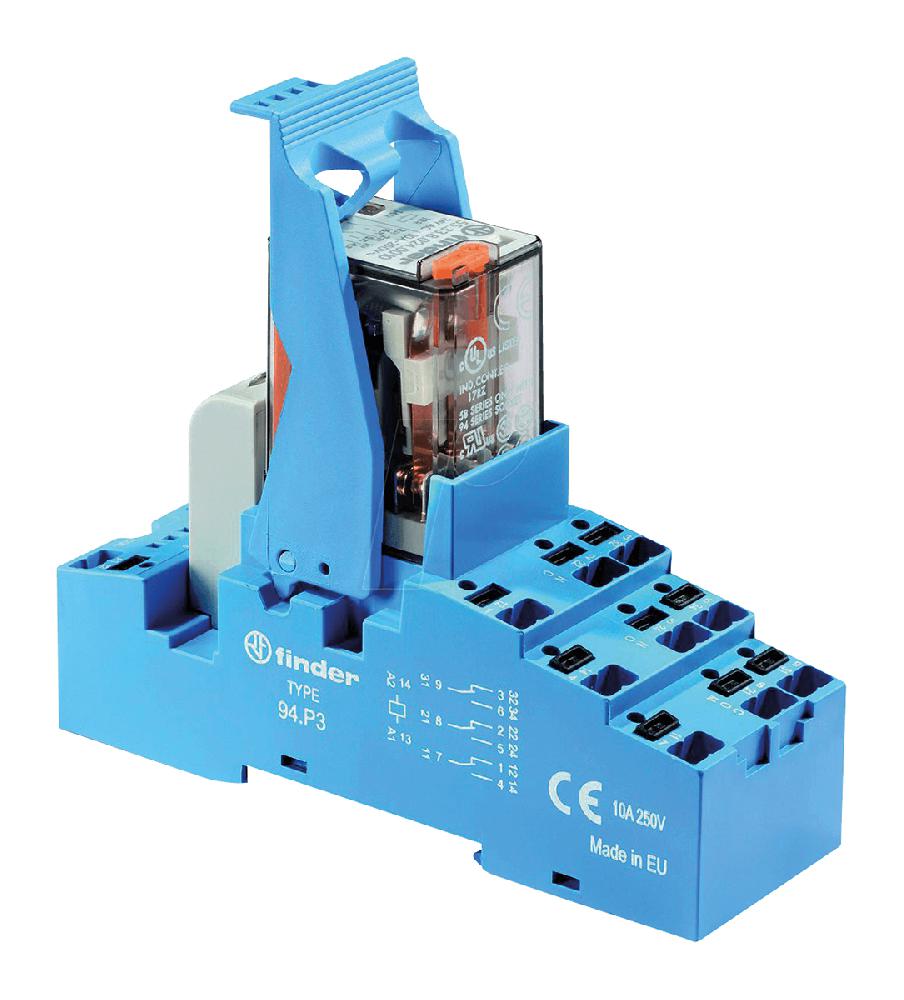

Finder 58 series relay interface modules are an ideal interface for PLC and electronic systems. 4PCO contact configuration

** ขอใบเสนอราคาติดต่อ ไลน์(หมายเลขโทรศัพท์): 087 674 1115
คุณสมบัติ
รายละเอียด
Coil Voltage110V ac
Contact Configuration3PDT
Mounting TypeDIN Rail
Number of Poles3
Load Current Rating10A
Maximum Input Voltage400V ac
Minimum Input Voltage250V ac
Switching Voltage250 V ac → 400V ac
Terminal TypePush In
Depth86.3mm
Height95.5mm
Length31mm
Series58 Series
Contact MaterialSilver Alloy
Input Current12.5mA
Operating Temperature Range-40 → +70°C
Turn On Time(ac) 10 ms, (dc) 10ms
Dimensions31 x 86.3 x 95.5mm
Maximum Operating Temperature+70°C
Minimum Operating Temperature-40°C
Turn Off Time(dc) 15 ms, (ac) 5ms
Special FeaturesAC Coils or DC Coils, Identification Label, Supply Status Indication & Coil Suppression Module as Standard
Standards MetCE, CSA, CULus, EAC, GOST, IMQ, LIoyd's Register, RINA, VDE
Relay Switching ClassificationGeneral Purpose Relay
Input Resistance4000Ω
